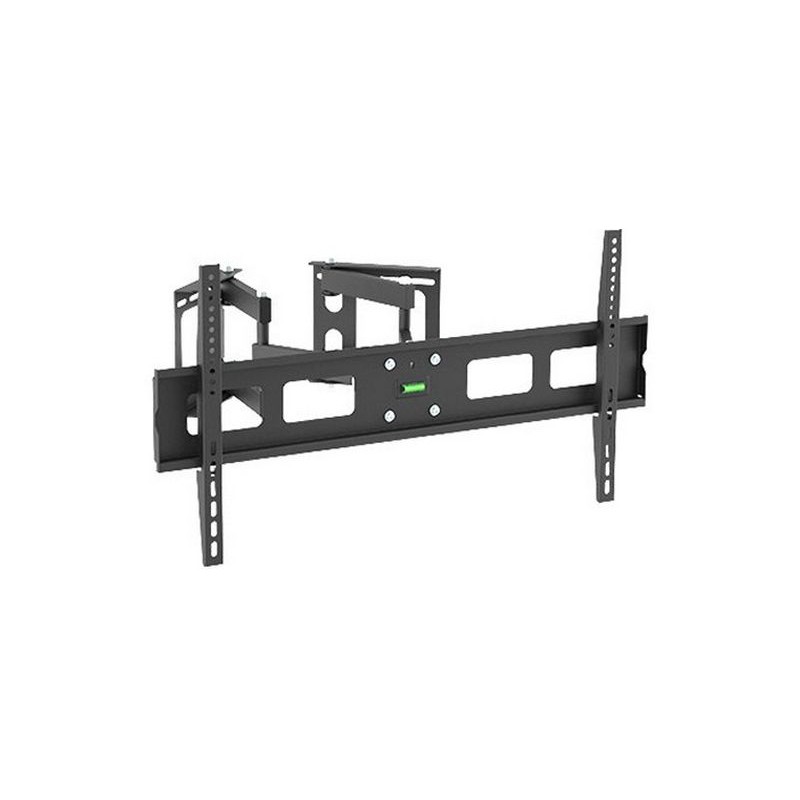

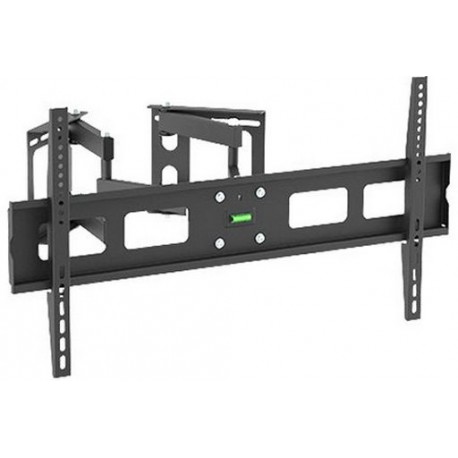

37-63 inch Corner Universal TV Wall Bracket Full-Motion

Reference: TVSWALL1290

Condition: New product

Corner wall bracket with dual-arm articulating 37-63inch

Supports upto 60kg

More details

Special Order : BACKORDER ETA 3-5 day delay to order in from suppliers warehouse.

Send to a friend

Send to a friend

37-63 inch Corner Universal TV Wall Bracket Full-Motion

Corner wall bracket with dual-arm articulating 37-63inch

Supports upto 60kg

Recipient :

Name of your friend ^* :

E-mail address of your friend ^* :

^* Required fields

or Cancel
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

More info

Corner wall bracket with dual-arm articulating for TVs up to 63", 60kgs.

It utilizes the dead corner space by installing your flat screen television on two adjacent walls.

If the wall plates are attached to the same wall, the mount works just like any other full-motion TV wall mount with swivel and extension capabilities.

Full motion allows maximum flexibility — tiilts and swivel your TV for easy viewing from any seat in a room.

Post-installation level adjustment allows the TV to “roll” up to 5 clockwise and counterclockwise to ensure it is perfectly level.

SPECIFICATION

Product Category:	Full-motion TV Wall Mount

Material:	Steel
Metal Sheet Thickness:	VESA Panel 2mm cold-rolled sheet,Bracket Arm 2mm cold-rolled sheet,Wall Plate 3mm hot-rolled sheet
Pipe Size:	20x40x1.5mm (0.79"x1.6"x0.059")
Surface Finish:	Powder Coating
Color:	Fine Texture Black

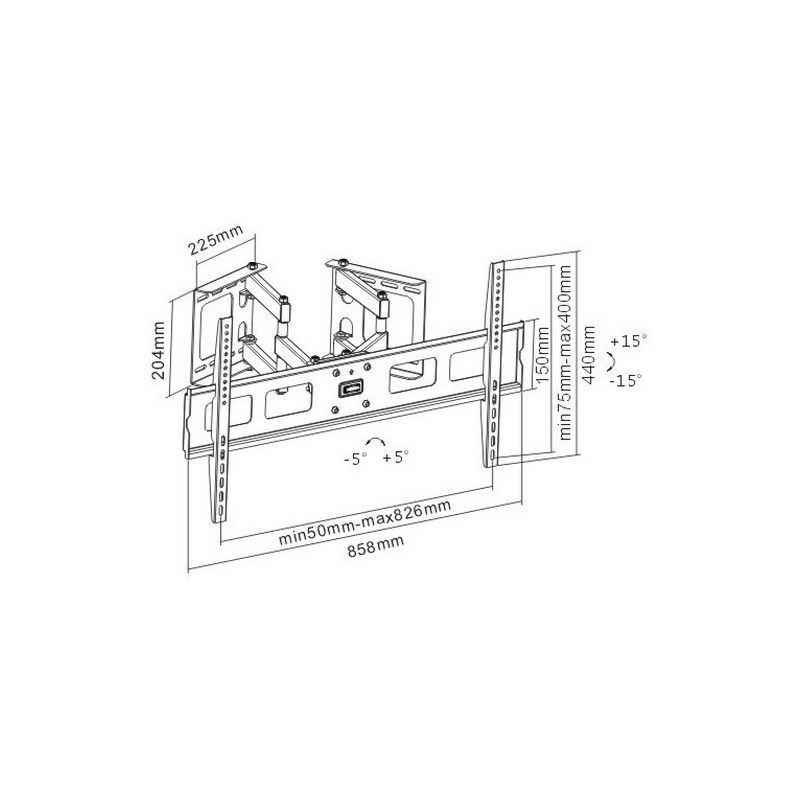

Dimensions:	515x858x440mm (20.3"x33.8"x17.3")
Fit Screen Size:	37"-63"
Fit Curved TV:	Yes
Mounting Hole Pattern:	VESA & Universal
VESA Compatible:	200x200,300x300,400x200,400x400,600x400,800x400
Max. VESA:	826x400mm

Weight Capacity:	60kg (132lbs)
Strength Tested:	3 Times Approved
Tilt Range:	+15°~-15°
Screen Level:	+5°~-5°
Screen Freely Tilting:	No
Installation:	Solid Wall
Panel Type:	Detachable Panel
Wall Plate Type:	Fiixed Wall Plate
Cable Management:	No
Anti-theft:	No
Bubble Level:	Built-in Bubble Level (Integrated on Wall Plate/VESA Panel)
