Universal Heavy Duty TILT and SWING Television Wall Bracket 50-90inch

View larger

50-90 inch Universal Heavy Duty TV Wall Bracket Full-Motion

Reference: TVSWALL1262

Condition: New product

Universal Television Wall Bracket 50-90inch

Great replacement for SU-WL850 Profile 69mm

Supports upto 75kg

More details

Special Order :BACKORDER ETA 3-5 day delay to order in from suppliers warehouse.

Send to a friend

Send to a friend

50-90 inch Universal Heavy Duty TV Wall Bracket Full-Motion

Universal Television Wall Bracket 50-90inch

Great replacement for SU-WL850 Profile 69mm

Supports upto 75kg

Recipient :

Name of your friend ^* :

E-mail address of your friend ^* :

^* Required fields

or Cancel
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

More info

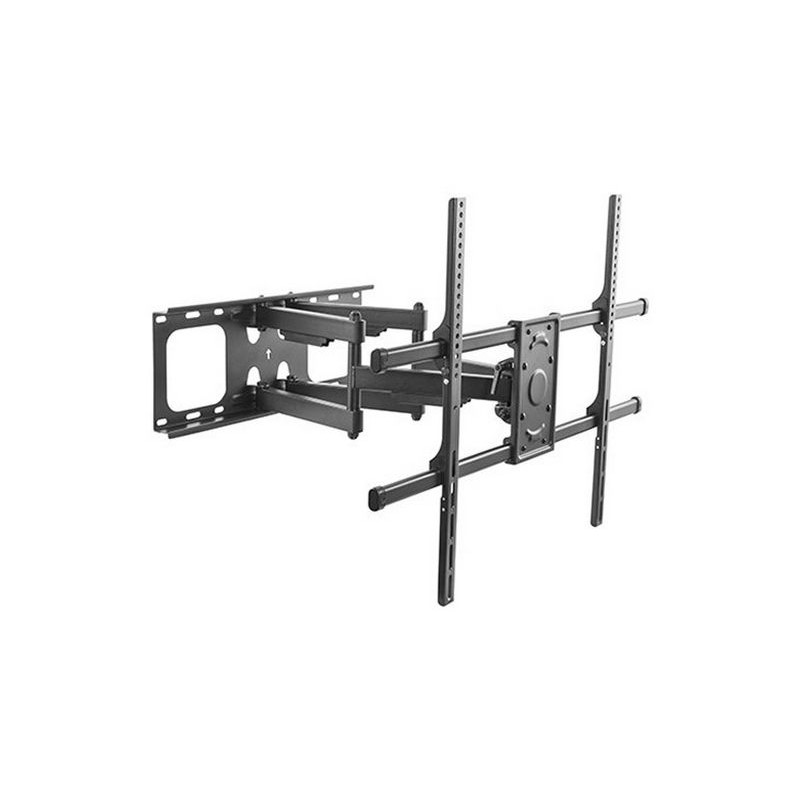

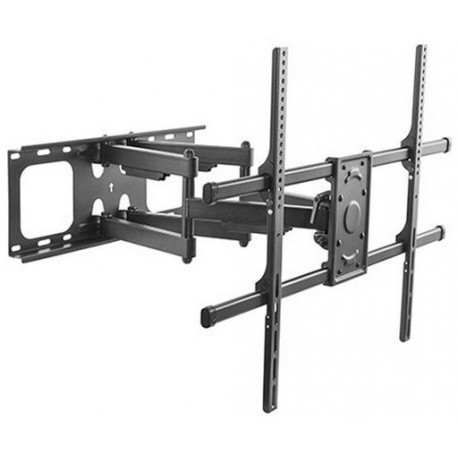

This solid full-motion wall mount is constructed with high gauge steel designed for most 50"-90" flat panel TVs up to 75kg.

This mount allows you to have your flat panel TV tilted for glare control or optimum viewing angle, pulled out from the wall (635mm extension) and angled towards a separate viewing area.

The pre-assembled arm comes with integrated cable management and decorative covers to ensure an elegant and tidy look.

SPECIFICATION

Product Category:	Full-motion TV Wall Mount

Material:	Steel


Surface Finish:	Powder Coating
Color:	Fine Texture Black

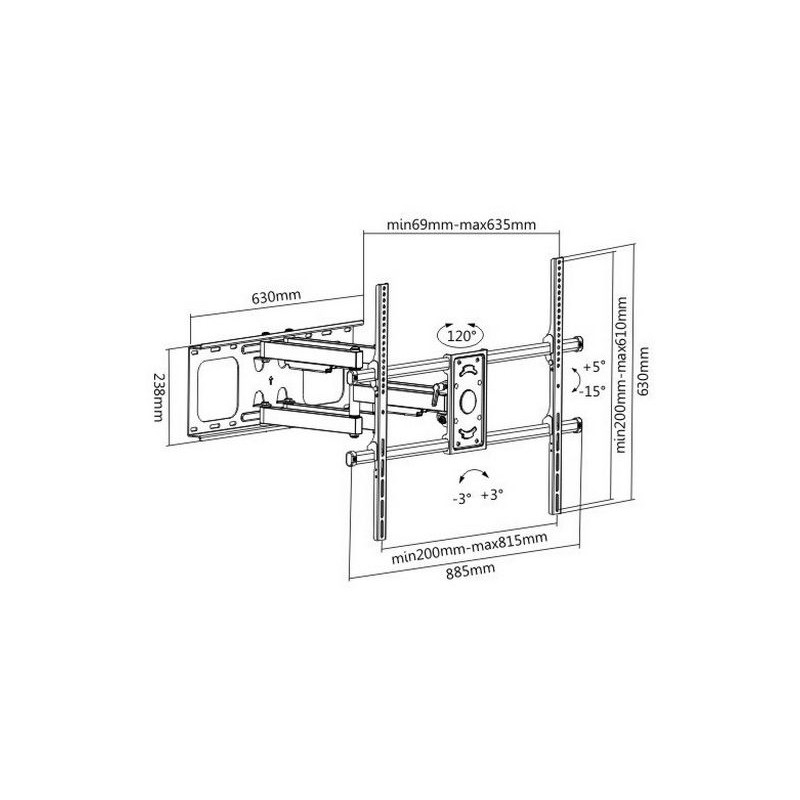

Dimensions:	635x885x630mm
Fit Screen Size:	50"-90"
Fit Curved TV:	Yes
Mounting Hole Pattern:	VESA & Universal
VESA Compatible:	200x200,300x200,300x300,400x200,400x300, 400x400,600x400,800x400,800x600
Max. VESA:	816x610mm
Weight Capacity:	75kg

Strength Tested:	2 Times Approved
Profile:	Min 69mm Max 635mm from Wall
Tilt Range:	5°-15°
Swivel Range:	+60°-60°
Screen Level:	+3°-3°
Screen Freely Tilting:	No
Installation:	Double Stud(406mm/450mm/600mm),Solid Wall
Panel Type:	Detachable Panel
Wall Plate Type:	Fiixed Wall Plate
Cable Management:	Yes

Bubble Level:	Hook-on Bubble Level(Included in Components Package)
Accessory Kit Package:	Normal attachment bolts, etc
