View larger

43-80 inch Slim Universal TV Wall Bracket Fixed

Reference: TVSWALL2702

Condition: New product

Universal Television Fixed Wall Bracket 43-80inch

Supports upto 40kg

1 Item Items

Available In Stock

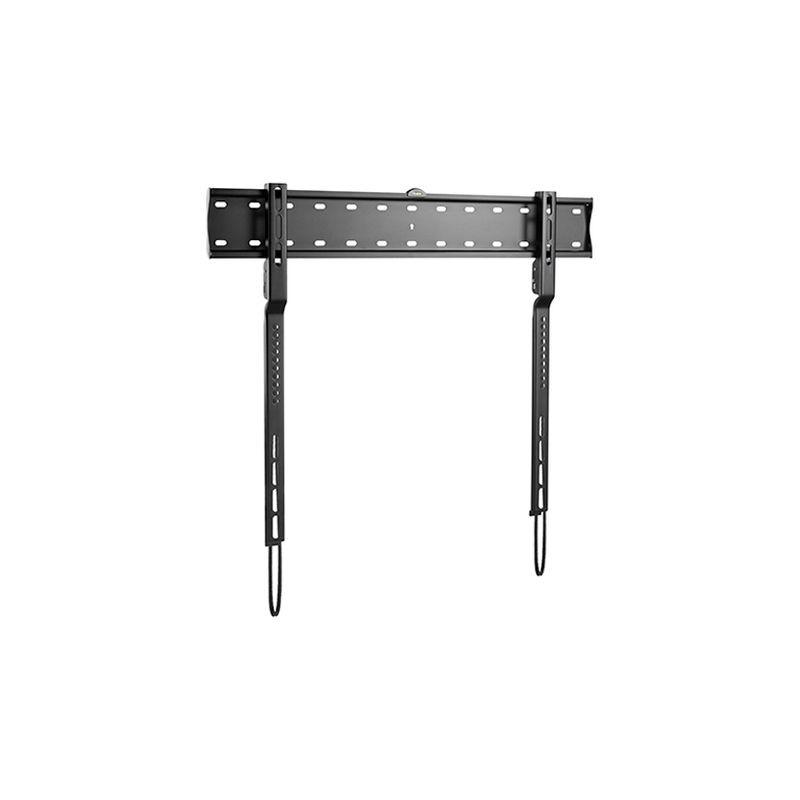

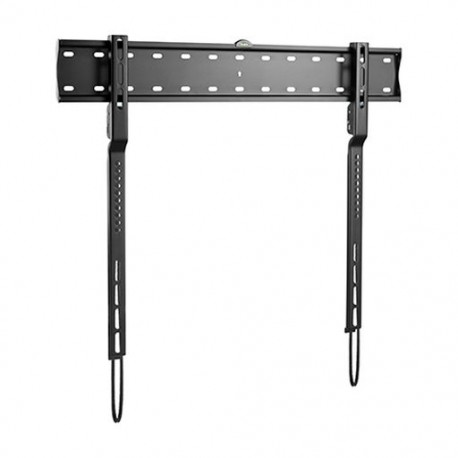

Ultra slim TV wall mount.

Depending on TV design, TV will sit between 18mm to 30mm from the wall.

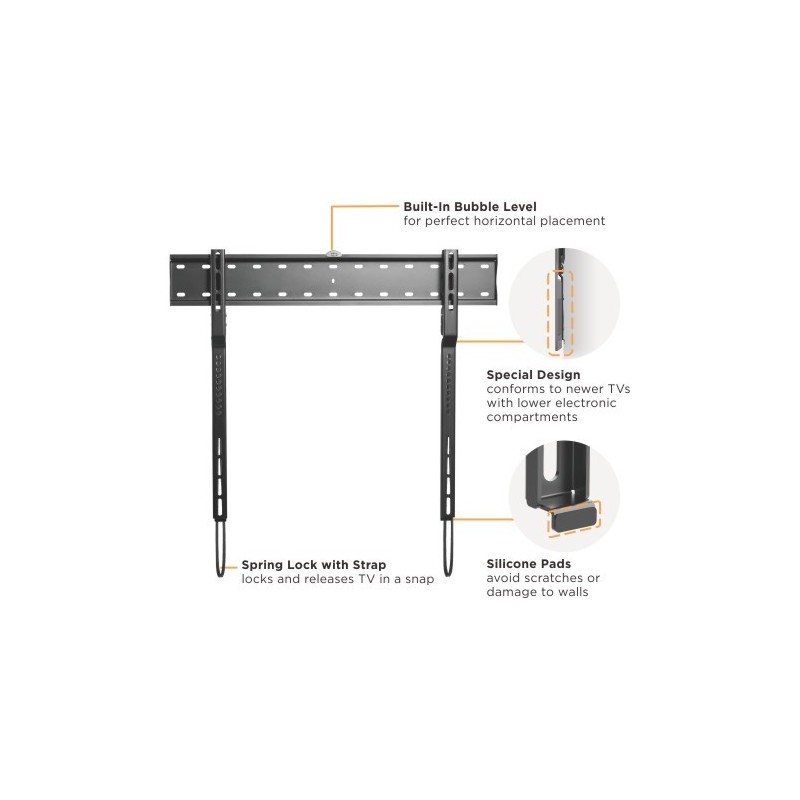

Spring lock with Quick Release cord.

Suits 43"-80" OLED TVs up to 40kg.

VESA compatible with 200x200, 300x200, 400x200, 300x300, 400x300, 600x300

This ultra-thin wall mount is specially designed to fit the rear contour of newer TVs with lower electronic compartments.

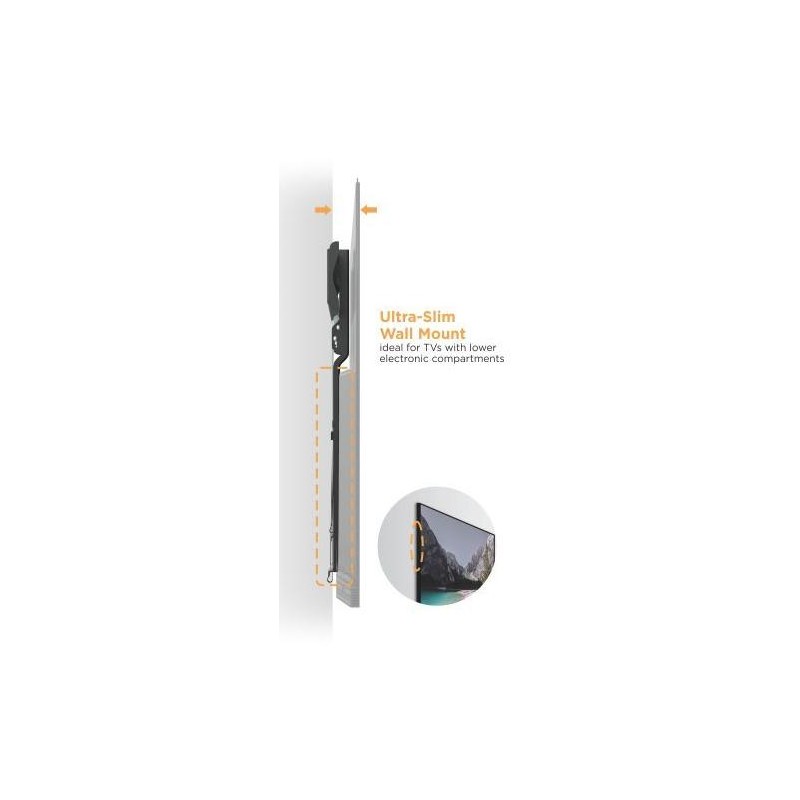

The impressively low 18mm profile (lower slim length of arm) to the wall creates a more spacious environment.

Integrated bubble level ensures perfect alignment.

Includes silicon Pads to avoid scratches or damage to walls.

Includes screws M5x14, M6x14, M6x30, M8x20, M8x30 and spacers.

SPECIFICATION

Product Category:	Fixed TV Wall Mount

Material:	Steel, Plastic
Metal Sheet Thickness:	Bracket Arm THK=2mm cold-rolled sheet,Wall Plate THK=1.5mm cold-rolled sheet (Bracket Arm THK=0.079" cold-rolled sheet,Wall Plate THK=0.059" cold-rolled sheet)
Surface Finish:	Powder Coating
Color:	Matte Black

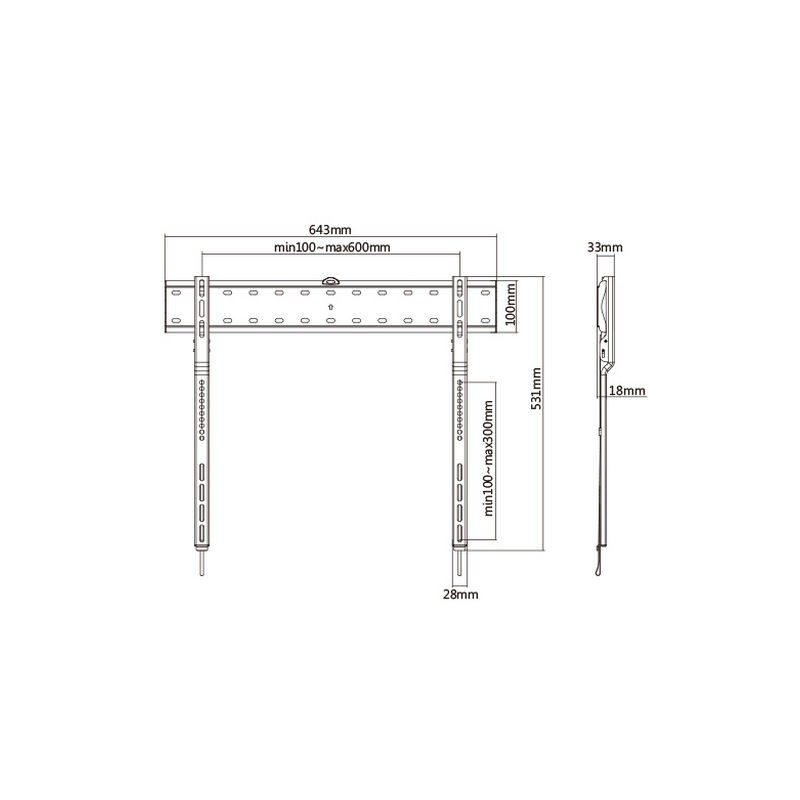

Dimensions:	643x531x33mm (25.3"x20.9"x1.3")
Fit Screen Size:	43"-80"
Mounting Hole Pattern:	VESA & Universal
VESA Compatible:	200x200,300x200,400x200,300x300,400x300,600x300

Max. VESA:	600x300
Weight Capacity:	40kg (88lbs)
Strength Tested:	4 Times Approved
Profile:	18mm (0.71")
Installation:	Solid Wall,Double Stud(406mm)
Panel Type:	Detachable Panel
Wall Plate Type:	Fixed Wall Plate
Cable Management:	No
Anti-theft:	No
Bubble Level:	Built-in Bubble Level (Integrated on Wall Plate)
